DAML-S: Semantic Markup for Web Services

The DAML Services Coalition1


The Semantic Web should enable greater access not only to content but also to services on the Web. Users and software agents should be able to discover, invoke, compose, and monitor Web resources offering particular services and having particular properties. As part of the DARPA Agent Markup Language program, we are developing an ontology of services, called DAML-S, that will make these functionalities possible. In this white paper we describe the overall structure of the ontology and its three main parts: the service profile for advertising and discovering services; the process model, which gives a detailed description of a service's operation; and the grounding, which provides details on how to interoperate with a service, via messages. We also discuss the motivation for DAML-S, and work on related ontologies for resources and for time.

This white paper accompanies DAML-S version 0.7, which is available at

1 Introduction: Services on the Semantic Web

Efforts toward the creation of the Semantic Web are gaining momentum [1]. Soon it will be possible to access Web resources by content rather than just by keywords. A significant force in this movement is the development of a new generation of Web markup languages such as DAML-- the DARPA Agent Markup Language [8], DAML+OIL [9] and OWL [4].2These languages enable the creation of ontologies for any domain and the instantiation of these ontologies in the description of specific Web sites.

Among the most important Web resources are those that provide services. By ``service'' we mean Web sites that do not merely provide static information but allow one to effect some action or change in the world, such as the sale of a product or the control of a physical device. The Semantic Web should enable users to locate, select, employ, compose, and monitor Web-based services automatically.

To make use of a Web service, a software agent needs a computer-interpretable description of the service, and the means by which it is accessed. An important goal for Semantic Web markup languages, then, is to establish a framework within which these descriptions are made and shared. Web sites should be able to employ a set of basic classes and properties for declaring and describing services, and the ontology structuring mechanisms of DAML+OIL provide the appropriate framework within which to do this.

This paper describes a collaborative effort by BBN Technologies, Carnegie Mellon University, Nokia, Stanford University, SRI International, and Yale University, to define just such an ontology. We call this language DAML-S. We first motivate our effort with some sample tasks. In the central part of the paper we describe the upper ontology for services that we have developed, including its subontologies for profiles, processes, and groundings, and related work on ontologies for resources and time, and thoughts toward a future ontology of process control.

This paper accompanies DAML-S version 0.7, which is available at [3]. Please note that, in addition to the DAML+OIL ontology files, the release site includes examples and additional forms of documentation, including, in particular, a code walk-through illustrative of many points in this document, additional explanatory material (in HTML) regarding the grounding and the use of profile-based class hierarchies, and information about status of this work, including unresolved issues and future directions.

2 Some Motivating Tasks

Services can be simple or primitive in the sense that they invoke only a single Web-accessible computer program, sensor, or device that does not rely upon another Web service, and there is no ongoing interaction between the user and the service, beyond a simple response. For example, a service that returns a postal code or the longitude and latitude when given an address would be in this category. Alternately, services can be complex, composed of multiple primitive services, often requiring an interaction or conversation between the user and the services, so that the user can make choices and provide information conditionally. One's interaction with www.amazon.com to buy a book is like this; the user searches for books by various criteria, perhaps reads reviews, may or may not decide to buy, and gives credit card and mailing information. DAML-S is meant to support both categories of services, but complex services have provided the primary motivations for the features of the language. The following four sample tasks will give the reader an idea of the kinds of tasks we expect DAML-S to enable [13,14].

  1. Automatic Web service discovery. Automatic Web service discovery involves the automatic location of Web services that provide a particular service and that adhere to requested constraints. For example, the user may want to find a service that sells airline tickets between two given cities and accepts a particular credit card. Currently, this task must be performed by a human who might use a search engine to find a service, read the Web page, and execute the service manually, to determine if it satisfies the constraints. With DAML-S markup of services, the information necessary for Web service discovery could be specified as computer-interpretable semantic markup at the service Web sites, and a service registry or ontology-enhanced search engine could be used to locate the services automatically. Alternatively, a server could proactively advertise itself in DAML-S with a service registry, also called middle agent [5,21,12], so that requesters can find it when they query the registry. Thus, DAML-S must provide declarative advertisements of service properties and capabilities that can be used for automatic service discovery.

  2. Automatic Web service invocation. Automatic Web service invocation involves the automatic execution of an identified Web service by a computer program or agent. For example, the user could request the purchase of an airline ticket from a particular site on a particular flight. Currently, a user must go to the Web site offering that service, fill out a form, and click on a button to execute the service. Alternately, the user might send an HTTP request directly to the service with the appropriate parameters in HTML. In either case, a human in the loop is necessary. Execution of a Web service can be thought of as a collection of function calls. DAML-S markup of Web services provides a declarative, computer-interpretable API for executing these function calls. A software agent should be able to interpret the markup to understand what input is necessary to the service call, what information will be returned, and how to execute the service automatically. Thus, DAML-S should provide declarative APIs for Web services that are necessary for automated Web service execution.

  3. Automatic Web service composition and interoperation. This task involves the automatic selection, composition, and interoperation of Web services to perform some task, given a high-level description of an objective. For example, the user may want to make all the travel arrangements for a trip to a conference. Currently, the user must select the Web services, specify the composition manually, and make sure that any software needed for the interoperation is custom-created. With DAML-S markup of Web services, the information necessary to select and compose services will be encoded at the service Web sites. Software can be written to manipulate these representations, together with a specification of the objectives of the task, to achieve the task automatically. Thus, DAML-S must provide declarative specifications of the prerequisites and consequences of individual service use that are necessary for automatic service composition and interoperation.

  4. Automatic Web service execution monitoring. Individual services and, even more, compositions of services, will often require some time to execute completely. A user may want to know during this period what the status of his or her or request is, or plans may have changed, thus requiring alterations in the actions the software agent takes. For example, a user may want to make sure that a hotel reservation has already been made. For these purposes, it would be good to have the ability to find out where in the process the request is and whether any unanticipated glitches have appeared. Thus, DAML-S should provide descriptors for the execution of services. This part of DAML-S is a goal of ours, but it has not yet been defined.

Any Web-accessible program/sensor/device that is declared as a service will be regarded as a service. DAML-S does not preclude declaring simple, static Web pages to be services. But our primary motivation in defining DAML-S has been to support more complex tasks like those described above.

3 An Upper Ontology for Services

Our structuring of the ontology of services is motivated by the need to provide three essential types of knowledge about a service (shown in figure 1), each characterized by the question it answers:

The class SERVICE provides a organizational point of reference for declaring Web services; one instance of SERVICE will exist for each distinct published service. The properties presents, describedBy, and supports are properties of SERVICE. The classes SERVICEPROFILE, SERVICEMODEL, and SERVICEGROUNDING are the respective ranges of those properties. Each instance of SERVICE will present a descendant class of SERVICEPROFILE, be describedBy a descendant class of SERVICEMODEL, and support a descendant class of SERVICEGROUNDING. The details of profiles, models, and groundings may vary widely from one type of service to another--that is, from one descendant class of SERVICE to another. But each of these three classes provides an essential type of information about the service, as characterized in the rest of the paper.

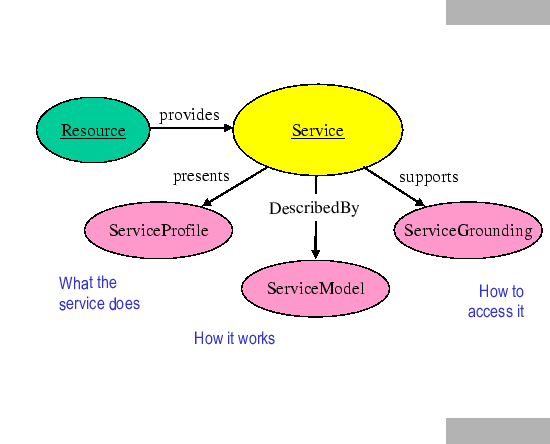

Figure 1: Top level of the service ontology
\epsfig{file=Service.eps, width=5in, clip=}\end{center}\end{figure}

The service profile tells ``what the service does''; that is, it gives the types of information needed by a service-seeking agent (or matchmaking agent acting on behalf of a service-seeking agent) to determine whether the service meets its needs. In addition to representing the capabilities of a service, the profile can be used to express the needs of the service-seeking agent, so that a matchmaker has a convenient dual-purpose representation upon which to base its operations.

The service model tells ``how the service works''; that is, it describes what happens when the service is carried out. For nontrivial services (those composed of several steps over time), this description may be used by a service-seeking agent in at least four different ways: (1) to perform a more in-depth analysis of whether the service meets its needs; (2) to compose service descriptions from multiple services to perform a specific task; (3) during the course of the service enactment, to coordinate the activities of the different participants; and (4) to monitor the execution of the service.

A service grounding (``grounding'' for short) specifies the details of how an agent can access a service. Typically a grounding will specify a communication protocol, message formats, and other service-specific details such as port numbers used in contacting the service. In addition, the grounding must specify, for each abstract type specified in the SERVICEMODEL, an unambiguous way of exchanging data elements of that type with the service (that is, the serialization techniques employed).

Generally speaking, the SERVICEPROFILE provides the information needed for an agent to discover a service. Taken together, the SERVICEMODEL and SERVICEGROUNDING objects associated with a service provide enough information for an agent to make use of a service.

The upper ontology for services specifies only two cardinality constraints: a service can be described by at most one service model, and a service model must be accompanied by at least one supporting grounding. The upper ontology deliberately does not specify any minimum cardinality for the properties presents or describedBy. (Although, in principle, a service needs all three properties to be fully characterized, it is easy to imagine situations in which a partial characterization could be useful.) Nor does the upper ontology specify any maximum cardinality for presents or supports. (It will be extremely useful for some services to offer multiple profiles and/or multiple groundings.)

Finally, it must be noted that while we define one particular upper ontology for profiles, one for service models, and one for groundings, nevertheless DAML-S allows for the construction of alternative approaches in each case. Our intent here is not to prescribe a single approach in each of the three areas, but rather to provide default approaches that will be useful for the majority of cases. In the following three sections we discuss the resulting service profile, service model, and service grounding in greater detail.

4 Service Profiles

A transaction in a web services marketplace involves three parties: the service requesters, the service provider, and infrastructure components [20,21]. The service requester, which may broadly identify with the buyer, seeks a service to complete its work; the service provider, which can be broadly identified with the seller, provides a service sought by the requester. In an open environment such as the Internet, the requester may not know ahead of time of the existence of the provider, so the requester relies on infrastructure components that act like registries to find the appropriate provider. For instance, a requester may need a news service that reports stock quotes with no delay with respect to the market. The role of the registries is to match the request with the offers of service providers to identify which of them is the best match. Within the DAML-S framework, the Service Profile provides a way to describe the services offered by the providers, and the services needed by the requesters.

The Service Profile does not mandate any representation of services; rather, using the DAML subclassing it is possible to create specialized representations of services that can be used as service profiles. DAML-S provides one possible representation through the class Profile. A DAML-S Profile describes a service as a function of three basic types of information: what organization provides the service, what function the service computes, and a host of features that specify characteristics of the service. The three pieces of information are reviewed in order below.

The provider information consists of contact information that refers to the entity that provides the service. For instance, contact information may refer to the maintenance operator that is responsible for running the service, or to a customer representative that may provide additional information about the service.

The functional description of the service is expressed in terms of the transformation produced by the service. Specifically, it specifices the inputs required by the service and the outputs generated; furthermore, since a service may require external conditions to be satisfied, and it has the effect of changing such conditions, the profile describes the preconditions required by the service and the expected effects that result from the execution of the service. For example, a selling service may require as a precondition a valid credit card and as input the credit card number and expiration date. As output it generates a receipt, and as effect the card is charged.

Finally, the profile allows the description of a host of properties that are used to describe features of the service. The first type of information specifies the category of a given service, for example, the category of the service within the UNSPSC classification system. The second type of information is quality rating of the service: some services may be very good, reliable, and quick to respond; others may be unreliable, sluggish, or even malevolent. Before using a service, a requester may want to check what kind of service it is dealing with; therefore, a service may want to publish its rating within a specified rating system, to showcase the quality of service it provides. It is up to the service requester to use this information, to verify that it is indeed correct, and to decide what to do with it. The last type of information is an unbounded list of service parameters that can contain any type of information. The DAML-S Profile provides a few examples of such parameters ranging from an estimate of the max response time, to the geographic radius of a service.

4.1 Compiling a Profile: The Relation with Process Model

The Profile of a service provides a concise description of the service to a registry, but once the service has been selected the Profile is useless; rather, the client will use the Process Model to control the interaction with the service. Although the Profile and the Process Model play different roles during the transaction between Web services, they are two different representations of the same service, so it is natural to expect that the input, output, precondition, and effects (hereafter IOPEs) of one are reflected in the IOPEs of the other.

DAML-S does not dictate any constraint between Profiles and Process Models, so the two descriptions may be inconsistent without affecting the validity of the DAML expression. Still, if the Profile represents a service that is not consistent with the service represented in the Process Model, the interaction will break at some point. As an extreme example, imagine a service that advertises as a travel agent, but adopts the process model of a book selling agent; it will be selected to reserve travels, but it will fail to do that, asking instead for book titles and ISBN numbers. On the other side, it will never be selected by services that want to buy books, so it will never sell a book either.

The selection of the IOPEs to specify in the Profile is quite a tricky process. It should avoid misrepresentation of the service, so ideally it would require all the IOPEs used in the Process Model. On the other side, some of those IOPEs may be so general that they do not describe the service. Another thing to consider is the registry's algorithm for matching requests with providers. Furthermore, the Profile implicitly specifies the intended purpose of the service: it advertises those functionalities that the service wants to provide, while it may hide (not declare publicly) other functionalities. As an example, consider a book-selling service that may involve two functionalities: the first one allows other services to browse its site to find books of interest, and the second one allows users to buy the books they found. The book seller has the choice of advertising just the book-buying functionality or both the browsing functionality and the buying functionality. In the latter case, the service makes public the fact that it can provide browsing services, and it allows everybody to browse its registry without buying a book. In contrast, by advertising only the book-selling functionality, but not the browsing, the agent discourages browsing by requesters who do not intend to buy. The decision as to which functionalities to advertise determines how the service will be used: a requester who intends to browse but not to buy would select a service that advertises both buying and browsing capabilities, but not one that advertises buying only.

In the description so far, we tacitly assumed a registry model in which service capabilities are advertised, and then matched against requests of service. This is the model adopted by registries like UDDI. While this is the most likely model to be adopted by Web services, other form of registry are also possible. For example, when the demand for a service is higher than the supply, then advertising needs for service is more efficient then advertising offered services since a provider can select the next request as soon as it is free; furthermore, in a pure P2P architecture there would be no registry at all. Indeed the types of registry may vary widely and as many as 28 different types have been identified [21,5]. By using a declarative representation of Web services, the service profile is not committed to any form of registry, but it can be used in all of them. Since the service profile represents both offers of services and needs of services, then it can be used in a reverse registry that records needs and queries on offers. Indeed, the Service Profile can be used in all 28 types of registry.

4.2 Profile Properties

In the following we describe in detail the fields of the profile model; we classify them into four sections: the first one (4.2.1) describes the properties that link the Service Profile class with the Service class and Process Model class; the second section (4.2.2) describes the form of contact information and the Description of the profile -- this is information usually intended for human consumption; in the third section (4.2.4), we discuss the functional representation and specifically the IOPEs; finally, in the last section (4.2.6), we describe the attributes of the Profile.

4.2.1 Service Profile

The class ServiceProfile provides a superclass of every type of high-level description of the service. ServiceProfile does not mandate any representation of services, but it mandates the basic information to link any instance of profile with an instance of service.

There is a two-way relation between a service and a profile, so that a service can be related to a profile and a profile to a service. These relations are expressed by the properties presents and presentedBy.

describes a relation between an instance of service and an instance of profile, it basically says that the service is described by the profile.

is the inverse of presents; it specifies that a given profile describes a service.

4.2.2 Service Name, Contacts and Description

Some properties of the profile provide human-readable information that is unlikely to be automatically processed. These properties include serviceName, textDescription and contactInformation. A profile may have at most one service name and text description, but as many items of contact information as the provider wants to offer.

refers to the name of the service that is being offered. It can be used as an identifier of the service.

provides a brief description of the service. It summarizes what the service offers, it describes what the service requires to work, and it indicates any additional information that the compiler of the profile wants to share with the receivers.

specifies a person or other entity that the provider of the service wants to share with the reader. Each item of contact information is an instance of the class Actor described below.

4.2.3 Actor

The class Actor provides information on the provider or the requester of the service; specifically, it provides the following information.

The name property of Actor specifies the name of the actor. This could be either a person name or a company name.

Title of the contact, a CEO, or ServiceDepartment or whatever is deemed appropriate

A phone number that can be used to gather information on the service

A fax number that can be used to gather information on the service

An e-mail address that can be used to gather information on the service

A physical address that can be used to gather information on the service

A URL of the product or company Website

4.2.4 Functionality Description

An essential component of the profile is the specification of what functionality the service provides and the specification of the conditions that must be satisfied for a successful result. In addition, the profile specifies what conditions result from the service, including the expected and unexpected results of the service activity. The DAML-S Profile represents two aspects of the functionality of the service: the information transformation and the state change produced by the execution of the service. For example, to complete the sale, a book-selling service requires as input a credit card number and expiration date, but also the precondition that the credit card actually exists and is not overdrawn. The result of the sale is the output of a receipt that confirms the proper execution of the transaction, and as effect the transfer of ownership and the physical transfer of the book from the the warehouse of the seller to the address of the buyer.

The information transformation produced by the service is represented by input and output properties of the profile. The input property specifies the information that the service requires to proceed with the computation. For example, a book-selling service could require the credit-card number and bibliographical information of the book to sell. The outputs specify what is the result of the operation of the service. For the book-selling agent the output could be a receipt that acknowledges the sale.

The state change produced by the execution of the service is specified through the precondition and effect properties of the profile. Precondition presents logical conditions that should be satisfied prior to the service being requested. These conditions should have associated explicit effects that may occur as a result of the service being performed. Effects are the result of the successful execution of a service. The representation of preconditions and effects depends on the representation of rules in the DAML language. Currently, a working group is trying to specify rules in DAML, but no proposal has been put forward. For this reason, the fields precondition and effect are mapped to thing meaning that anything is possible, but this will have to be modified in future releases of the profile.

specifies one of the inputs of the service. It takes as value an instance of ParameterDescription (see below) that specifies an id of the input, a value and a reference to the corresponding input in the process model. The value of the property is an instance of ParameterDescription described below (4.2.5).

specifies one of the outputs of the service. It takes as value an instance of ParameterDescription (see below) that specifies an id of the output, a value and a reference to the corresponding output in the process model. The value of the property is an instance of ParameterDescription described below (4.2.5).

specifies one of the preconditions of the service. It takes as value an instance of ParameterDescription (4.2.5) that specifies an id of the precondition, a value and a reference to the corresponding precondition in the process model. The value of the property is an instance of ParameterDescription described below (4.2.5).

specifies one of the effects of the service. It takes as value an instance of ParameterDescription (4.2.5) that specifies an id of the effect, a value and a reference to the corresponding effect in the process model. The value of the property is an instance of ParameterDescription described below (4.2.5).

4.2.5 ParameterDescription

The class ParameterDescription provides values to inputs and outputs. It collects in one class the name of the input or output that can be used as an identifier, its value and a reference to the corresponding input or output in the process model.

provides the name of the input or output, which could be just a literal, or perhaps the URI of the process parameter (a property).

provides a restriction on the values of the input or output.

provides a reference to the input or output in the process model.

4.2.6 Profile Attributes

In the previous section we introduced the functional description of services, but there are other aspects of services of which users should be aware. These additional attributes include the quality guarantees that are provided by the service, possible classification of the service, and additional parameters that the service may want to specify.

is an expandable list of properties that may accompany a profile description. The value of the property is an instance of the class ServiceParameter (4.2.7).

refers to an entry in some ontology or taxonomy of services. The value of the property is an instance of the class ServiceCategory (4.2.9)

is used to specify the rating of a service using some rating system. The rating of a service provides the potential client with information about the quality of the service provided. (4.2.8)

4.2.7 ServiceParameter

is the name of the actual parameter, which could be just a literal, or perhaps the URI of the process parameter (a property).

points to the value of the parameter within some DAML ontology.

4.2.8 QualityRating

points to the name of the rating service.

stores the value of the rating within a given rating service.

4.2.9 ServiceCategory

ServiceCategory describes categories of services on the bases of some classification that may be outside DAML-S and possibly outside DAML. In the latter case, they may require some specialized reasoner if any inference has to be done with it.

is the name of the actual category, which could be just a literal, or perhaps the URI of the process parameter (a property).

stores a reference to the taxonomy scheme. It can be either a URI of the taxonomy, or a URL where the taxonomy resides, or the name of the taxonomy or anything else.

points to the value in a specific taxonomy There may be more than one value for each taxonomy, so no restriction is added here.

to each type of service stores the code associated to a taxonomy.

4.3 Deprecated Properties: changes from 0.6 to 0.7

The following attributes used in version 0.6 have been deprecated in version 0.7.

provides information on what constitutes successful accomplishment of a service execution.

links the service profile to an Actor who provides the service.

links the service profile to an Actor who requests the service.

- not to be confused with RDF resources, or domain restrictions - specifies resources that are necessary for the task to be executed. No range restrictions are placed on the resource at present (as with those used by the process model). Specific service descriptions will specialize this property by restricting the range appropriately using subPropertyOf.

refers to the geographic scope of the service. This may be at the global or national scale (e.g., for e-commerce) or at a local scale (e.g., pizza delivery).

provides qualifications about the service. For example, the following two subproperties are examples of different degrees of quality, and could be defined within some additional ontology.

provides a high-level summary of how a service may communicate, such as what agent communication language (ACL) is used (e.g., FIPA, KQML, SOAP). This summarizes the descriptions provided by the service grounding and is used when matching services, but it is not intended to replace the detail provided by the service grounding.

refers to a high-level classification of the service, for example B2B or B2C.

are guarantees that the service promises to deliver, such as guaranteeing to provide the lowest possible interest rate, or a respose within 3 minutes.

5 Modeling Services as Processes

To give a detailed perspective on a service, it can be viewed as a process. We have defined a particular subclass of SERVICEMODEL, the PROCESSMODEL, which draws upon well-established work in a variety of fields, such as AI planning and workflow automation, and which we believe supports the representational needs of a very broad array of services on the Web. As with the other DAML-S subontologies, our intent here is not to mandate the service modeling approach to be used with all services, but rather to provide a general, canonical, and broadly applicable approach that will be useful for the great majority of cases.

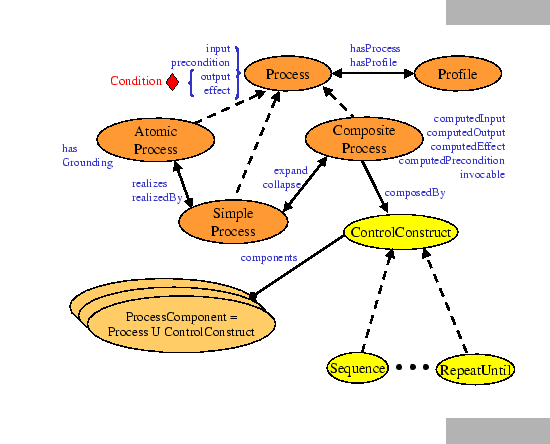

There are two chief components of a process model. The process -- which describes a service in terms of its inputs, outputs, preconditions, effects, and, where appropriate, its component subprocesses -- enables planning, composition and agent/service interoperation. The process control model allows agents to monitor the execution of a service request. We refer to the first part as the Process Ontology and the second as the Process Control Ontology. Only the former has been defined in the current version of DAML-S, but below we briefly describe our intentions with regard to the latter. To support both Process and Process Control specification, we have defined an ontology of resources, and a simple ontology of time, both described below; in subsequent versions these will be elaborated further.

5.1 The Process Ontology

We expect our process ontology to serve as the basis for specifying a wide array of services. In developing the ontology, we draw from a variety of sources, including work in AI on standardizations of planning languages [7], work in programming languages and distributed systems [16,15], emerging standards in process modeling and workflow technology such as the NIST's Process Specification Language (PSL) [18] and the Workflow Management Coalition effort (http://www.aiim.org/wfmc), work on modeling verb semantics and event structure [17], previous work on action-inspired Web service markup [14], work in AI on modeling complex actions [10], and work in agent communication languages [12,6].

The primary kind of entity in the Process Ontology is, unsurprisingly, a ``process''.4 A process can have any number of inputs, representing the information that is, under some conditions, required for the execution of the process. It can have any number of outputs, the information that the process provides, conditionally, after its execution. Besides inputs and outputs, another important type of parameter specifies the participants in a process. A variety of other parameters may also be declared, including, for physical devices, such things as rates, forces, and knob settings. There can be any number of preconditions, which must all hold in order for the process to be invoked. Finally, the process can have any number of effects. Outputs and effects can have conditions associated with them.

More precisely, in DAML-S:

5.2 Specifying Data Flow; Parameter Bindings

When defining processes using DAML-S, there are many places where different properties of a process, or elements referred to by process properties, should be equated, in the sense that the information denoted by the objects of these properties should be the identical whenever the process is instantiated. A simple example is an atomic process to buy something, where the item to be purchased is referred to by some name or identifier provided as an input to the process, and the various process outputs refer to the same identifier, perhaps as parts of a message saying whether the transaction succeeded or failed. There are many places where this equivalence needs to be stated for the process model to be successfully applied by an agent, including:

In a programming language or in a logic language, we would show how these elements were related using variables. In programming, the variables would be function arguments or local variables. They would be referenced in a function body, to indicate how, for example, an argument of some step was the same as an input to the whole function, and how it came from the output of a previous step.

DAML+OIL does not provide for the use of variables, especially when defining related classes in an ontology. There is no way to state in a class definition that one of the class properties is referenced elsewhere by a variable name, and that this indicates that the properties' values will be identical when the structure is instantiated. Using DAML+OIL, one can only define the inputs and outputs of processes as properties with range restrictions representing the /em classes of allowed values, independent of any context.

We have considered many schemes to address this limitation in DAML+OIL expressivity, and have, for this release, adopted the following DAML+OIL notation. The intent is to capture, purely as a set of process annotations, this critical information about how processes are to be instantiated and information shared between process elements. We have extended our process ontology with the classes and properties used in this notation. The use of this notation in a process definition will enable a specialized DAML-S process reasoner to use this information to determine which properties should have ``the same value'' in any coherent instance of the process being defined.

In this notation, an instance of the class VALUEOF, with properties atClass and theProperty denotes the object (value) of the specified property at the specified class. This style of reference is intended to be used only within the context of a process being annotated using the property sameValues, which relates a process class to a collection of VALUEOF objects. The set of referenced ValueOf elements are considered to share the same information, as if their values were represented by a single variable.

The DAML+OIL definitions of these properties are as follows:

<!-- Used to annotate a process component by describing which
     properties share values.
     The range is a List of ValueOf instances.  -->
<rdf:Property rdf:ID="sameValues">
  <daml:domain rdf:resource="#ProcessComponent"/>
  <daml:range rdf:resource="http://www.daml.org/2001/03/daml+oil#List"/>

<daml:Class rdf:ID="ValueOf"/>

<!-- This property indicates the class (usually a Process) having the
     referenced property -->
<rdf:Property rdf:ID="atClass">
  <rdfs:domain rdf:resource="#ValueOf"/>
  <rdfs:range  rdf:resource="http://www.daml.org/2001/03/daml+oil#Class"/>

<!-- The property (usually a parameter) whose values are
     referred to. -->
<rdf:Property rdf:ID="theProperty">
  <rdfs:domain rdf:resource="#ValueOf"/>
  <rdfs:range  rdf:resource="http://www.daml.org/2001/03/daml+oil#Property"/>

5.3 Process Control Ontology

A process instantiation represents a complex process that is executing in the world. To monitor and control the execution of a process, an agent needs a model to interpret process instantiations with three characteristics:

  1. It should provide the mapping rules for the various input state properties (inputs, preconditions) to the corresponding output state properties.

  2. It should provide a model of the temporal or state dependencies described by constructs such as sequence, split, split+join, and so forth.

  3. It should provide representations for messages about the execution state of atomic and composite processes sufficient to do execution monitoring. This allows an agent to keep track of the status of executions, including successful, failed and interrupted processes, and to respond to each appropriately.

We have not defined a process control ontology in the current version of DAML-S, but we plan to in a future version.

5.4 Time

In conjunction with DAML-S, a temporal ontology is being developed. It is intended to cover a wide range of temporal constructs, including topological relations among instants and intervals, notions of duration, the clock and calendar, and a treatment of temporal granularity. The most recent write-up on the ontology can be found at

A subset of this ontology has been coded in DAML+OIL - essentially, that part of the ontology that is naturally expressible in description logic. This can be found at

6 Grounding a Service to a Concrete Realization

The grounding of a service specifies the details of how to access the service - details having mainly to do with protocol and message formats, serialization, transport, and addressing. A grounding can be thought of as a mapping from an abstract to a concrete specification of those service description elements that are required for interacting with the service - in particular, for our purposes, the inputs and outputs of atomic processes. Note that in DAML-S, both the ServiceProfile and the ServiceModel are thought of as abstract representations; only the ServiceGrounding deals with the concrete level of specification.

DAML-S does not include an abstract construct for describing messages. Rather, the abstract content of a message is specified, implicitly, by the input or output properties of some atomic process. Thus, atomic processes, in addition to specifying the basic actions from which larger processes are composed, can also be thought of as the communication primitives of an (abstract) process specification.

Concrete messages, however, are specified explicitly in a grounding. The central function of a DAML-S grounding is to show how the (abstract) inputs and outputs of an atomic process are to be realized concretely as messages, which carry those inputs and outputs in some specific transmittable format. Due to the existence of a significant body of work in the area of concrete message specification, which is already well along in terms of industry adoption, we have chosen to make use of the Web Services Description Language (WSDL), a particular specification language proposal with strong industry backing, and which we view as representative of such efforts, in crafting an initial grounding mechanism for DAML-S. As mentioned above, our intent here is not to prescribe the grounding approach to be used with all services, but rather to provide a general, canonical and broadly applicable approach that will be useful for the great majority of cases.

Web Services Description Language (WSDL) ``is an XML format for describing network services as a set of endpoints operating on messages containing either document-oriented or procedure-oriented information. The operations and messages are described abstractly, and then bound to a concrete network protocol and message format to define an endpoint. Related concrete endpoints are combined into abstract endpoints (services). WSDL is extensible to allow description of endpoints and their messages regardless of what message formats or network protocols are used to communicate'' [2].

It may readily be observed that DAML-S' concept of grounding is generally consistent with WSDL's concept of binding. Indeed, by using the extensibility elements already provided by WSDL, along with one new extensibility element proposed here, it is an easy matter to ground a DAML-S atomic process. Here, we show how this may be done, relying on the WSDL 1.1 specification. Note that the approach described here relies on certain assumptions about the DAML-S and WSDL constructs to be employed, and does not cover all possible complementary uses of DAML-S and WSDL. These assumptions will be discussed further in subsection 6.4.

6.1 Relationships between DAML-S and WSDL

The approach described here allows a service developer, who is going to provide service descriptions for use by potential clients, to take advantage of the complementary strengths of these two specification languages. On the one hand (the abstract side of a service specification), the developer benefits by making use of DAML-S' process model, and the expressiveness of DAML+OIL's class typing mechanisms, relative to what XML Schema provides. On the other hand (the concrete side), the developer benefits from the opportunity to reuse the extensive work done in WSDL (and related languages such as SOAP), and software support for message exchanges based on these declarations, as defined to date for various protocols and transport mechanisms.

Figure 3: Mapping between DAML-S and WSDL
\epsfig{file=Venn.eps, width=2.5in} \end{center}\end{figure}

We emphasize that a DAML-S/WSDL grounding involves a complementary use of the two languages, in a way that is in accord with the intentions of the authors of WSDL. Both languages are required for the full specification of a grounding, because the two languages do not cover the same conceptual space. As indicated by Figure 3, the two languages do overlap in the area of providing for the specification of what WSDL calls ``abstract types'', which in turn are used to characterize the inputs and outputs of services. WSDL, by default, specifies abstract types using XML Schema, whereas DAML-S allows for the definition of abstract types as (description logic-based) DAML+OIL classes 7. However, WSDL/XSD is unable to express the semantics of a DAML+OIL class. Similarly, DAML-S has no means, as currently defined, to express the binding information that WSDL captures. Thus, it is natural that a DAML-S/WSDL grounding uses DAML+OIL classes as the abstract types of message parts declared in WSDL, and then relies on WSDL binding constructs to specify the formatting of the messages. 8

A DAML-S/WSDL grounding is based upon the following three correspondences between DAML-S and WSDL. Figure 3 shows the first two of these.

  1. A DAML-S atomic process corresponds to a WSDL operation. Different types of operations are related to DAML-S processes as follows:

  2. The set of inputs and the set of outputs of a DAML-S atomic process each correspond to WSDL's concept of message. More precisely, DAML-S inputs correspond to the parts of an input message of a WSDL operation, and DAML-S outputs correspond to the parts of an output message of a WSDL operation.

  3. The types (DAML+OIL classes) of the inputs and outputs of a DAML-S atomic process correspond to WSDL's extensible notion of abstract type (and, as such, may be used in WSDL specifications of message parts).

The job of a DAML-S/WSDL grounding is first, to define, in WSDL, the messages and operations by which an atomic process may be accessed, and then, to specify correspondences (1) and (2). Although it is not logically necessary to do so, we believe it will be useful to specify these correspondences both in WSDL and in DAML-S. Thus, as indicated in the following, we allow for constructs in both languages for this purpose.

6.2 Grounding DAML-S Services with WSDL and SOAP

Because DAML-S is an XML-based language, and its atomic process declarations and input and output types already fit nicely with WSDL, it is easy to extend existing WSDL bindings for use with DAML-S, such as the SOAP binding. Here, we indicate briefly how an arbitrary atomic process, specified in DAML-S, can be given a grounding using WSDL and SOAP, with the assumption of HTTP as the chosen transport mechanism.

Grounding DAML-S with WSDL and SOAP involves the construction of a WSDL service description with all the usual parts (message, operation, port type, binding, and service constructs), except that the types element can normally be omitted. DAML-S extensions are introduced as follows:

  1. In each part of the WSDL message definition, the daml-s-parameter attribute is used to indicate the fully qualified name of the DAML-S input or output property, to which this part of the message corresponds. From the property name, the appropriate DAML range class - the class of object that this message part will contain - can easily be obtained.

  2. In each WSDL operation element, the daml-s-process attribute is used to indicate the name of the DAML-S atomic process, to which the operation corresponds.

  3. Within the WSDL binding element, the encodingStyle attribute is given a value such as
    ``http://www.daml.org/2001/03/daml+oil.daml'', to indicate that the message parts will be serialized in the normal way for class instances of the given types, for the specified version of DAML.

Note that WSDL already allows for the use of arbitrary new attributes in message part elements, and for the use of arbitrary values for the encodingStyle attribute. Thus, extension (2) above is the only point on which a modification to the current WSDL specification is called for.

6.3 The Grounding Class

We have shown how WSDL may be used to ground a DAML-S atomic process, in particular, how WSDL may be used to specify the correspondence between a DAML-S atomic process and a WSDL operation, as well as the correspondences between the process' inputs (or outputs) and a WSDL message. Thus far, however, we have only shown how WSDL definitions may refer to the corresponding DAML-S declarations. It remains to establish a mechanism by which the relevant WSDL constructs may be referenced in DAML-S. The DAML-S WsdlGrounding class, a subclass of Grounding, serves this purpose.

A WSDLGROUNDING object refers to specific elements within the WSDL specification, using the following properties:

Additional explanation and examples of how to specify groundings are given in an online document [11].

6.4 Limitations of this Approach

The approach described above is adequate to cover only certain cases, in which the correspondences between DAML-S constructs and WSDL constructs are relatively straightforward. It relies on the following assumptions:

  1. A single atomic process corresponds to a single WSDL operation.
  2. Each atomic process input and output corresponds to a WSDL message part.
  3. The type of each WSDL message part can be specified as the range of a DAML-S parameter; that is, it is either a DAML+OIL class or an acceptable XML Schema datatype (an XML Schema datatype that's permitted for use in DAML+OIL).

Informally, this last assumption says that the current approach works with WSDL operations that are ``native speakers'' of DAML+OIL -- that is, are prepared to parse inputs and outputs that are of types specified in the corresponding DAML-S declarations. The impact of this last assumption is unclear at present; however, the current DAML+OIL spec leaves it unresolved as to what datatypes are acceptable: ``The question of whether any XML Schema datatype can be used in such constructions, or whether only certain XML Schema dataypes can be so used (such as only the predefined datatypes), remains open'' [9]. Depending on the resolution of this issue, assumption (3) may or may not be a serious constraint.

The impact of assumption (2) is, roughly speaking, that this approach is most likely to work well when either the DAML-S spec or the WSDL spec (or both) are created with prior knowledge of the other. However, one can certainly imagine cases where it would be useful to correlate a DAML-S service and a WSDL service, created independently of one another, and structured in a way that violates assumption (2). We intend to enable such cases in subsequent releases of DAML-S, by extending the current approach. These cases will require a more comprehensive technique of specifying correspondences between DAML-S atomic process inputs/outputs (or their components) and elements within an XSD definition. This technique will allow for assumptions (2) (and (3), if necessary) to be relaxed. The importance of relaxing assumption (1) is less clear at present.

There is also an unresolved issue having to do with DAML-S atomic processes that make use of conditional outputs, that is, that specify two or more possible sets of outputs. Because WSDL 1.1 allows only a single output message specification for a given operation, and because DAML-S' treatment of conditional outputs is expected to evolve further, this issue has been left unresolved in the current release (DAML-S 0.7).

7 Resources

Services are effected by processes and processes generally require resources. Therefore, an ontology of resources is an important component of an ontology of services. Our aim here is to propose an ontology of resources stated at an abstract enough level to cover physical, temporal, computational, and other sorts of resources. Specific kinds of resources will, of course, have specific properties; in this development we sketch out the principal classes of properties a resource might have. The DAML-S file Resource.daml contains a version of the portions of the ontology that can currently be encoded in DAML+OIL. As DAML develops, particularly in the area of expressing rules, the various constraints on concepts in the ontology will be written up in DAML as well.

First of all, a distinction must be pointed out. There are resource types, such as fuel. There are resource tokens, such as the fuel in the gas tank of a particular car. And there is the quantity, or capacity, of the resource token at any given instant, such as the five gallons of fuel in the car's tank right now. We are primarily interested in the second of these notions. Resources in this sense can, depending on resource type, be consumed, replenished, locked, and released. A resource token, or simply resource, is what is available to an activity.

7.1 Allocation Types

Resources are allocated to activities or processes. A principal distinction in types of resources concerns their status after the activity stops using them. We will call this the resource's AllocationType. If a resource is gone after it is used, its AllocationType is ConsumableAllocation. If not, its AllocationType is ReusableAllocation.

Examples of reusable resources are the use of a device, the availability of an agent, the use of a region of space, and the use of bandwidth. (These could be viewed as consumable uses of the cross product of the resource (e.g., space) with time, but they are easily decomposed into the resource and time, where only time is consumed.) A persistent resource can be locked and released. When it is locked, it cannot be used by another agent.

Examples of consumable resources are food, charge in a battery, fuel, money, and time. Consumable resources can sometimes be replenished after they are consumed. A deadline is an indirect constraint on the consumable resource of time.

Many resources, such as food, are perishable. We can view this case as having two processes operating on the resource - one functional and relatively rapid, one dysfunctional and relatively slow. Thus, eating food is functional, food spoiling is dysfunctional, and eating is rapid relative to spoiling.

Preconditions on processes can often be viewed as the availability of some resource. Many processes have a location precondition or, more generally, an access precondition. Permission would be an example. In general, if a process is executed as a precondition to another process, we can view its product (or its having been done) as a resource. Something being in the right location for a process's execution can thus be seen as a resource.

7.2 Capacity Types

Resources generally have a precise quantitative measure of capacity at any given instant of time. (Enthusiasm is an interesting limiting case - it is a consumable resource that can be replenished and is required for many tasks, but it cannot be measured precisely. Attention is a similar resource.)

The quantitative measure might be continuous, such as the quantity of fuel. Or it could be a discrete measure, such as a number of chairs occupied. Thus, a resource has a CapacityType, where the two CapacityTypes are DiscreteCapacity and ContinuousCapacity.

Capacity can be related to various other resource-theoretic predicates. In the following rules, for future incorporation into the DAML ontology, R stands for a resource, A for an activity, T for a time interval, and t for a time instant. The expression use(A,R,T/t) means that activity A uses resource R over time interval T or for time instant t. The expression capacity(R,T/t) refers to the capacity of resource R over time interval T or for time instant t.

The capacity of a persistent resource at the beginning of its use is the same as at the end.

$reusable(R) ~ \&~ use(A,R,T) \Rightarrow capacity(R,start(T)) = capacity(R,end(T))$

The quantity of a consumable resource at the beginning of its use is more than at the end.

$consumable(R) ~ \&~ use(A,R,T) \Rightarrow capacity(R,start(T)) > capacity(R,end(T))$

When an agent replenishes a resource during period T, there is more after the replenishment.

$replenish(A,R,T) \Rightarrow capacity(R,start(T)) < capacity(R,end(T))$

When a reusable resource is used for period T, it is locked at the beginning of T and released at the end.

$reusable(R) ~ \&~ use(A,R,T) \Rightarrow lock(A,R,start(T)) ~ \&~ release(A,R,end(T))$

Capacities of resources can also have a capacityGranularity, that is, the units in terms of which the capacity is measured.

7.3 Resource Composition

A resource can be atomic, or it can be an aggregate. Thus, AtomicResource and AggregateResource are subclasses of Resource.

Some atomic resources can be shared by different activities, while others cannot. For example, several activities may need a table but can in fact use the same table. We thus distinguish between unit capacity atomic resources, whose availability to an activity is a yes-no question, and batch capacity atomic resources, which can support multiple activities in a synchronized fashion. UnitCapacityResource and BatchCapacityResource are subclasses of AtomicResource.

Aggregates can be conjunctive or disjunctive. For conjunctive aggregates, all the elements must be allocated to the activity. For a disjunctive aggregate a subset of the elements in the aggregate can be allocated. An example of a disjunctive resource is a process that requires any 3 adjacent chairs of 100 chairs in a room. Thus, ConjunctiveAggregateResource and DisjunctiveAggregateResource are subclasses of AggregateResource.

Shareable resources should be understood in terms of batch capacity resources and aggregation.

A very important use of an ontology of resources could be in a monotonic version of ``negation as failure'' in DAML-L. In this view, ``not P'' would not be negation as failure. Rather one would use the predicate ``cantfind(P,R)'' where R is some indication of the resources to devote to the search for a proof of P. For example, R could then be a list or description of Web resources, a certain number of inference steps, or a certain amount of time.

8 Summary and Current Status

DAML-S is an attempt to provide an ontology, within the framework of the DARPA Agent Markup Language, for describing Web services. It will enable users and software agents to automatically discover, invoke, compose, and monitor Web resources offering services, under specified constraints.

This technical overview accompanies a third prerelease of DAML-S, version 0.7. The prerelease materials can be found at http://www.daml.org/services/. The Status page on this site gives additional information about limitations and incomplete aspects of the current release, and directions leading toward a version 1.0.

We expect to enhance DAML-S in the future in ways that we have indicated in this white paper, and in response to users' experience with it. We believe it will help make the Semantic Web a place where people can not only find information but also get things done.


T. Berners-Lee, J. Hendler, and O. Lassila.
The Semantic Web.
Scientific American, 284(5):34-43, 2001.

E. Christensen, F. Curbera, G. Meredith, and S. Weerawarana.
Web Services Description Language (WSDL) 1.1.
http://www.w3.org/TR/2001/NOTE-wsdl-20010315, 2001.

DAML-S Home Page.
http://www.daml.org/services/, 2002.

M. Dean, D. Connolly, F. van Harmelen, J. Hendler, I. Horrocks, D. L. McGuinness, P. F. Patel-Schneider, and L. A. Stein.
OWL Web Ontology Language 1.0 Reference.
http://www.w3.org/TR/owl-ref/, July 2002.

K. Decker, K. Sycara, and M. Williamson.
Middle-agents for the Internet.
In IJCAI97, 1997.

T. Finin, Y. Labrou, and J. Mayfield.
KQML as an Agent Communication Language.
In J. Bradshaw, editor, Software Agents. MIT Press, Cambridge, 1997.

M. Ghallab et al.
PDDL-The Planning Domain Definition Language V. 2.
Technical Report, report CVC TR-98-003/DCS TR-1165, Yale Center for Computational Vision and Control, 1998.

J. Hendler and D. L. McGuinness.
DARPA Agent Markup Language.
IEEE Intelligent Systems, 15(6):72-73, 2001.

Joint US/EU ad hoc Agent Markup Language Committee.
Reference description of the DAML+OIL (March 2001) ontology markup language.
http://www.daml.org/2001/03/reference, March 2001.

H. Levesque, R. Reiter, Y. Lesperance, F. Lin, and R. Scherl.
GOLOG: A Logic programming language for dynamic domains.
Journal of Logic Programming, 31(1-3):59-84, April-June 1997.

D. Martin, M. Burstein, O. Lassila, M. Paolucci, T. Payne, and S. McIlraith.
Describing Web Services using DAML-S and WSDL.
http://www.daml.org/services/daml-s/0.7/daml-s-wsdl.html, August 2002.

D. Martin, A. Cheyer, and D. Moran.
The Open Agent Architecture: A Framework for Building Distributed Software Systems.
Applied Artificial Intelligence, 13(1-2):92-128, 1999.

S. McIlraith, T. C. Son, and H. Zeng.
Mobilizing the Web with DAML-Enabled Web Service.
In Proc. Second Int'l Workshop Semantic Web (SemWeb'2001), 2001.

S. McIlraith, T. C. Son, and H. Zeng.
Semantic Web Service.
IEEE Intelligent Systems, 16(2):46-53, 2001.

J. Meseguer.
Conditional Rewriting Logic as a Unified Model of Concurrency.
Theoretical Computer Science, 96(1):73-155, 1992.

R. Milner.
Communicating with Mobile Agents: The pi-Calculus.
Cambridge University Press, Cambridge, 1999.

S. Narayanan.
Reasoning About Actions in Narrative Understanding.
In Proc. International Joint Conference on Artificial Intelligence (IJCAI'1999), pages 350-357. Morgan Kaufmann Press, San Francisco, 1999.

C. Schlenoff, M. Gruninger, F. Tissot, J. Valois, J. Lubell, and J. Lee.
The Process Specification Language (PSL): Overview and Version 1.0 Specification.
NISTIR 6459, National Institute of Standards and Technology, Gaithersburg, MD, 2000.

K. Sycara and M. Klusch.
Brokering and Matchmaking for Coordination of Agent Societies: A Survey.
In A. Omicini et al, editor, Coordination of Internet Agents. Springer, 2001.

K. Sycara, M. Klusch, S. Widoff, and J. Lu.
Dynamic Service Matchmaking Among Agents in Open Information Environments.
ACM SIGMOD Record (Special Issue on Semantic Interoperability in Global Information Systems), 28(1):47-53, 1999.

H.-C. Wong and K. Sycara.
A Taxonomy of Middle-agents for the Internet.
In ICMAS'2000, 2000.


... Coalition1
This work is the collaborative effort of projects at BBN Technologies, Carnegie-Mellon University, Nokia, Stanford University, SRI International, and Yale University. Mark Burstein participated for BBN Technologies. The participants for Carnegie-Mellon University are Anupriya Ankolenkar, Massimo Paolucci, Terry Payne, and Katia Sycara. Ora Lassila participated for Nokia. The participants for Stanford University are Sheila McIlraith, Tran Cao Son, and Honglei Zeng. The participants for SRI International are Jerry Hobbs, David Martin, and Srini Narayanan. Drew McDermott participated for Yale.
The current version of DAML-S is built on top of DAML+OIL. Future versions are likely to be built on top of OWL, when it becomes sufficiently mature.
... ``profile3
Service profile has also been called ``service capability advertisement'' [19].
... ``process''.4
This term was chosen over the terms ``event'' and ``action'', in part because it is more suggestive of internal structure than ``event'' and because it does not necessarily presume an agent executing the process and thus is more general than ``action''. Ultimately, however, the choice is arbitrary. It is modeled after computational procedures or planning operators.
... m'',5
This can be obtained by restricting the size of the Process Bag that corresponds to the components of the chosen and chooseFrom subprocesses using cardinality, min-cardinality, max-cardinality to get choose(n, m)( $ 0
\leq n \leq \vert components(chooseFrom)\vert, 0 < m \leq \vert components(chosen)\vert$).
... below.6
Another possible extension is to ability to define counters and use their values as termination conditions. This could be part of an extended process control and execution monitoring ontology.
... classes7
The data types of XML Schema can also be used in defining DAML+OIL properties.
... messages.8
The DAML+OIL classes can either be defined within the WSDL types section, or defined in a separate document and referred to from within the WSDL description. In the remainder of this exposition, we describe only the latter approach.
... operation.9
Since a composite process has no grounding, this construct would be grounded indirectly by means of its relationship to a simple process (by the collapsesTo property), and hence to an atomic process (by the realizedBy property). We are considering whether to create a new kind of atomic process in DAML-S, which corresponds directly to the solicit-response operation.

David Martin 2002-10-02
